Air Cleaner Element: Removal

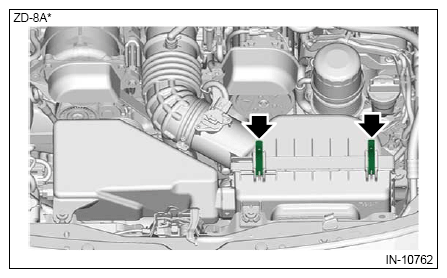

Release the clip lock.

Courtesy of SUBARU OF AMERICA, INC.

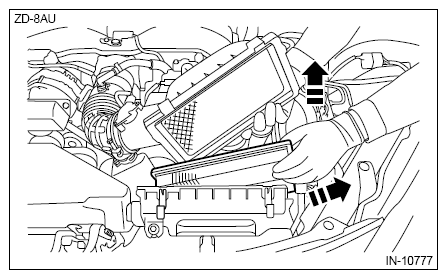

Lift the air cleaner case (rear) at an angle as shown in the figure and remove the air cleaner element.
CAUTION: To prevent damage due to interference between the air cleaner case (rear) and engine oil cooler, be careful not to let the parts contact during the work.

NOTE: Disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
