General Description
>>
Components With Torque Specifications
>>
Heat Shield Cover
Heat Shield Cover

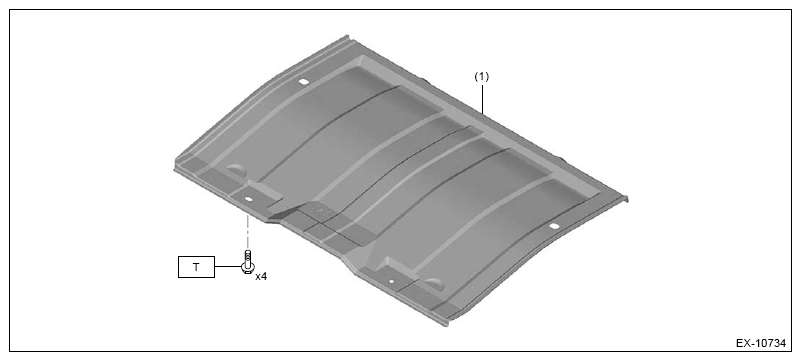

Fig 1: Heat Shield Cover Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Exhaust cover
Tightening torque: N.m (kgf-m, ft-lb)
T: 10 (1.0, 7.4)
Courtesy of SUBARU OF AMERICA, INC.
