Brake Control System (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

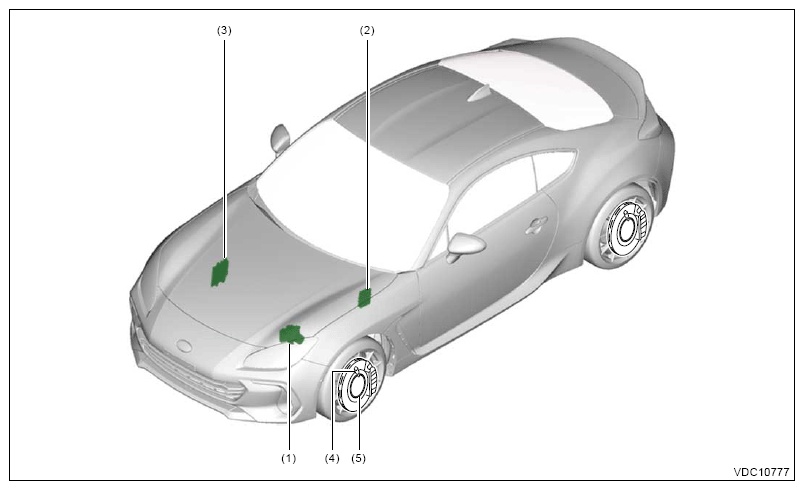

(1)	VSC (VDC) CONTROL MODULE & H/U
(2)	TCM
(3)	ECM
(4)	ABS wheel speed sensor
(5)	Magnetic encoder

Courtesy of SUBARU OF AMERICA, INC.

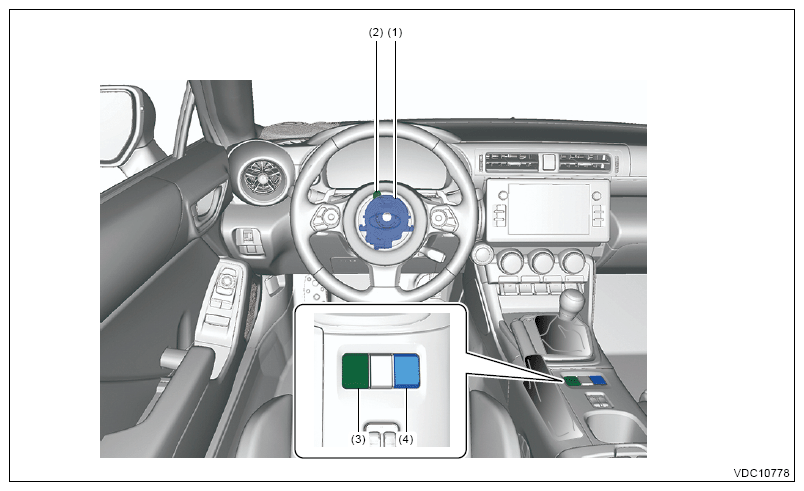

(1)	Steering angle sensor
(2)	Stop light and brake switch
(3)	VSC (VDC) OFF switch
(4)	TRACK switch

Courtesy of SUBARU OF AMERICA, INC.

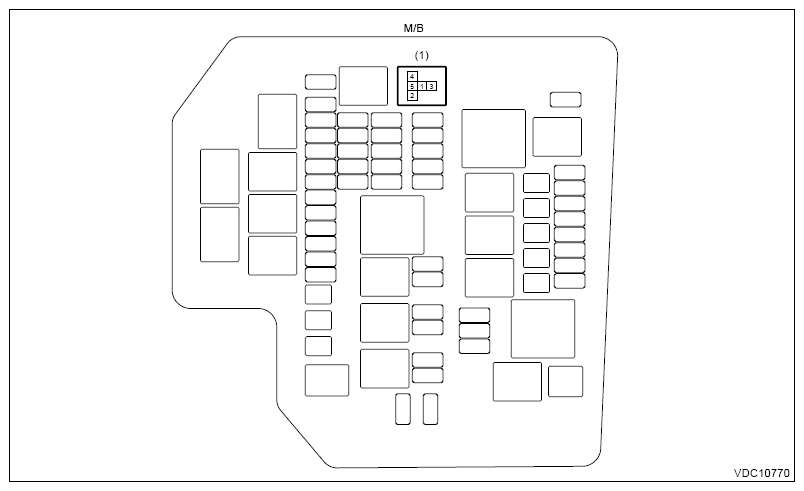

(1)	Stop light relay
