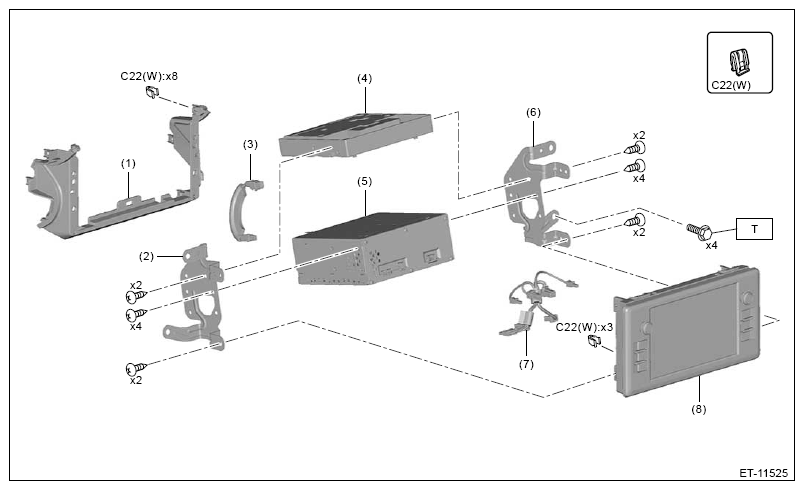

Center Information Display
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Panel center LWR ASSY |
| (2) |
Unit bracket LH |
| (3) |
Cable CCM |
| (4) |
Data communication module |
| (5) |
Cockpit control module |
| (6) |
Unit bracket RH |
| (7) |
Cord ASSY CCM |
| (8) |
Center information display |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
