External Connection Terminal: Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the boot assembly parking brake and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

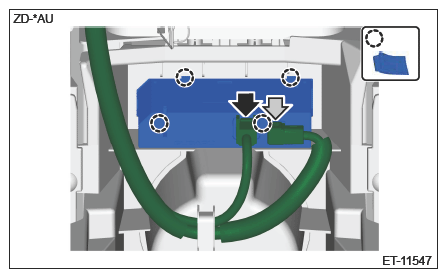

Remove the AUX unit assembly.
1. Disconnect the connector and cord assembly AUX.
2. Push the claw in as you release it, and then remove the AUX unit assembly from the console box assembly.
Courtesy of SUBARU OF AMERICA, INC.
