Entertainment System: Camera: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
3. Remove the garnish assembly trunk. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK GARNISH>REMOVAL .

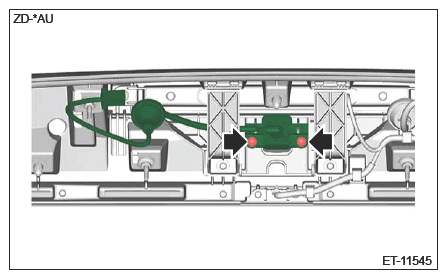

4. Remove the screws, and remove the rearview camera assembly.
   CAUTION: Do not drop or apply any impact to the rearview camera assembly because it is a precision equipment.

   Courtesy of SUBARU OF AMERICA, INC.

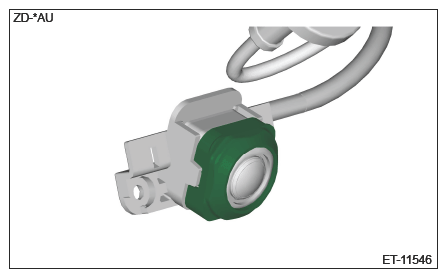

5. Remove the cover rearview camera.

NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
