Entertainment System: Camera: Inspection

  1. Park the vehicle at the level place where there are enough area at the rear of the vehicle.

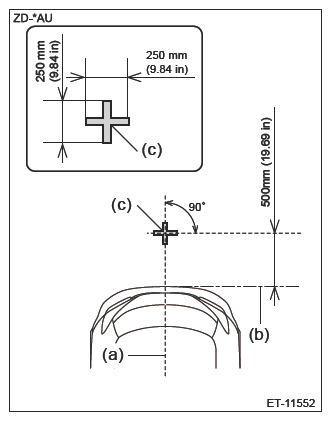

  2. Attach the tape as the target point for standard at the floor rearward of the vehicle as shown in the figure below.
    NOTE: Standard tape width is about 30 - 50 mm (1.18 - 1.97 in) and brilliant color shall be used.
    G16526968Courtesy of SUBARU OF AMERICA, INC.
    (a) Vehicle body center line
    (b) Rear edge of bumper
    (c) Target point
  3. Confirm the following before checking the corresponding items.
  1. The rearview image is not displayed. (Everything except for the rearview image is displayed properly.)
    1. Check the reverse signal with the {Vehicle Signal} items in the Dealership Mode. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>DEALERSHIP MODE>OPERATION .
    2. Check the rearview camera assembly connection status with the {Connection} items in the Dealership Mode. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>DEALERSHIP MODE>OPERATION .
  2. The guide line is not displayed, or the guide line position is not aligned.
    1. Check the camera guide line ON/OFF setting. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>CUSTOMIZE .
    2. The rearview camera or its installation location on the vehicle may be deformed. Check the rearview camera assembly and its installation location on the vehicle, and repair or replace if necessary.
