Auto Headlight Beam Leveler Control Module
Auto Headlight Beam Leveler Control Module

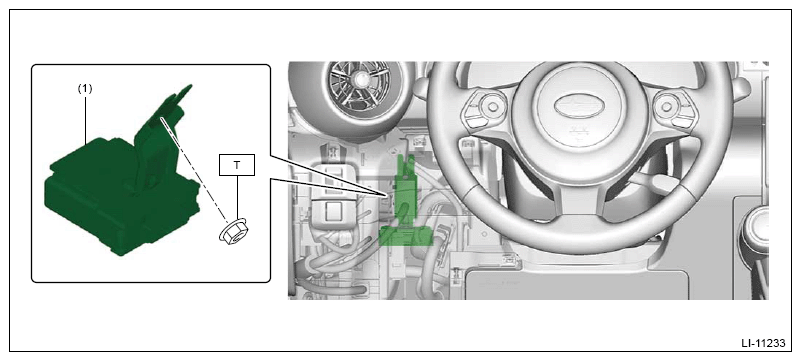

Fig 1: Auto Headlight Beam Leveler Control Module Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Auto headlight beam leveler control module
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
