Operating Cylinder: Installation

Install the operating cylinder.
Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

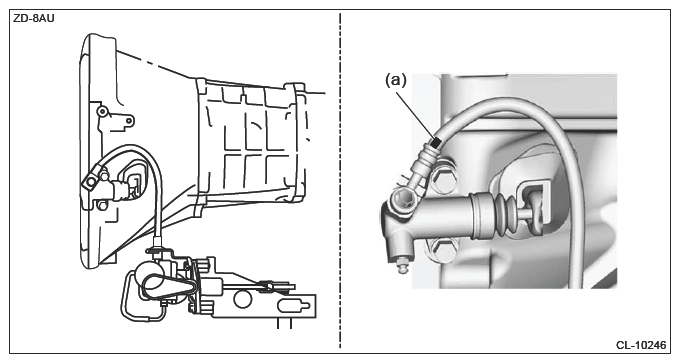

Using a new gasket, connect the clutch hose.
NOTE:
- Install the clutch hose while making sure that it hangs loose to the rear of the vehicle.
- Face the mark (a) of the clutch hose in the top direction.
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Bleed air from the clutch fluid. Ref. to CLUTCH SYSTEM>AIR BLEEDING>PROCEDURE .
