MT Gear Shift Rod: Removal

Remove the transmission body. Ref. to MANUAL TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .
Lift the crimped section of the clamp.

Courtesy of SUBARU OF AMERICA, INC.
slide the clamp to remove the pin.

Courtesy of SUBARU OF AMERICA, INC.

(A) Clamp

(B) Pin

Remove the MT gear shift rod, cushion, and clamp.

Courtesy of SUBARU OF AMERICA, INC.

Remove the snap pin and washer, and then remove the joint from the MT gear shift rod.

Courtesy of SUBARU OF AMERICA, INC.

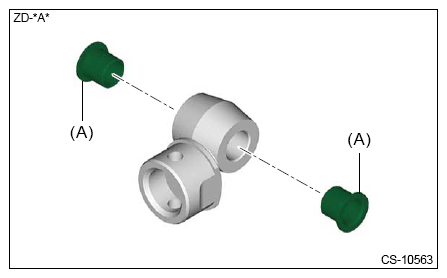

Remove the collar.

CAUTION: Be careful not to damage the collar.

NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

(A)

Collar
