LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the strut tower bar LH. Ref. to FRONT SUSPENSION>STRUT TOWER BAR>REMOVAL .
  3. Remove the claw (A) securing the fuel delivery tube clamp, and place the fuel delivery tube clamp together with the tubes aside so that it does not interfere with work.
  4. Remove the fuel protector (B).
    G16524539Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fuel pipe protector LH No. 1. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PIPE PROTECTOR>REMOVAL>FUEL PIPE PROTECTOR LH>FUEL PIPE PROTECTOR LH NO. 1 .
  6. Disconnect the connector (A) and remove the ignition coil (LH side).

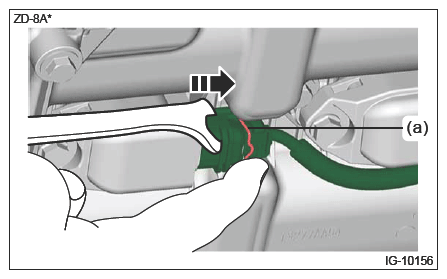

    NOTE: To disconnect the connector, while pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
G16524540Courtesy of SUBARU OF AMERICA, INC.
G16524541Courtesy of SUBARU OF AMERICA, INC.
