Front Door Glass: Adjustment: Notes

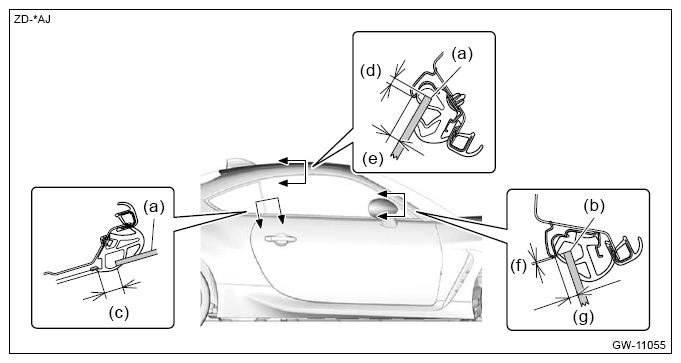

Check the placement dimensions of the glass assembly front door and adjust if necessary.
| (a) | Glass ASSY front door |
| (b) | Glass ASSY front door partition |
| (c) | 13.5 - 16.5 mm (0.53 - 0.65 in) |
| (d) | 3.5 - 6.5 mm (0.14 - 0.26 in) |
| (f) | -1.0 - 2.0 mm (-0.04 - 0.08 in) |
| (e) | 5.2 - 8.2 mm (0.20 - 0.32 in) |
| (g) | 5.5 - 8.5 mm (0.22 - 0.33 in) |
