Active Sound Control Speaker: Inspection
- Check that no foreign matter has entered the speaker and that the speaker cone is not torn, deformed, or otherwise damaged.

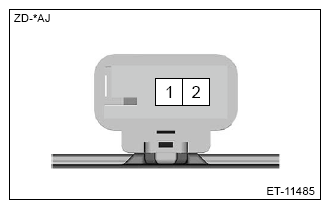

- Measure the resistance between connector terminals.
Terminal No. Inspection conditions Standard 1 - 2 Always 3.42 - 3.78 Ω - Replace the speaker assembly sound creator if it is found defective.
