Drive Plate: Removal

Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .

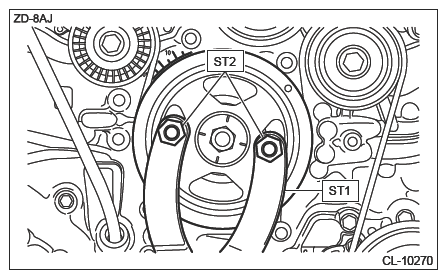

Secure the crank pulley with the ST1 and ST2.
Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA000)

Courtesy of SUBARU OF AMERICA, INC.

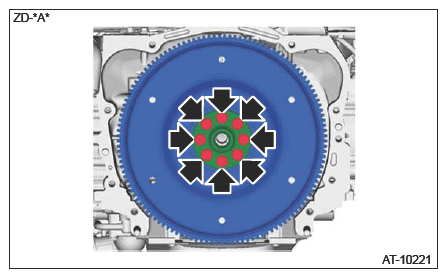

Remove the reinforcement drive plate, drive plate and crankshaft position sensor plate.

Courtesy of SUBARU OF AMERICA, INC.
