Steering Gearbox: Disassembly

NOTE: When fixing the steering gearbox assembly in a vise, apply a wooden piece on the flange portion.

Place an alignment mark (a) on the tie-rod end and lock nut.

Courtesy of SUBARU OF AMERICA, INC.
Remove the tie-rod end (b) and lock nut (c) from the steering gearbox assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clip boot tie-rod located on the exterior of the boot steering gearbox.

Courtesy of SUBARU OF AMERICA, INC.
Using a flat tip screwdriver, remove the band boot.
Remove the boot steering gearbox.
CAUTION: Check the surface for foreign matter such as dust, etc.

NOTE: Replace the boot steering gearbox if there is damage, cracks, or deterioration.

Courtesy of SUBARU OF AMERICA, INC.

Remove the tie-rod.

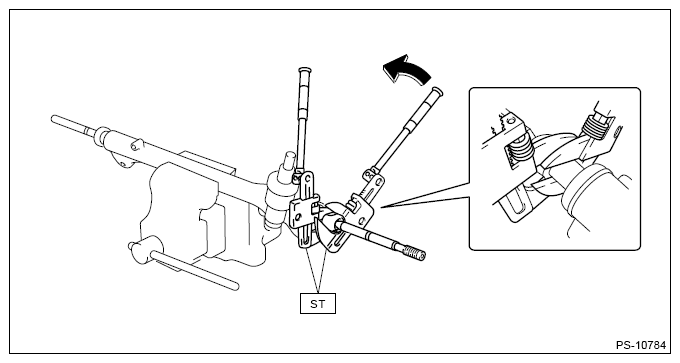

Use the ST to remove the tie-rod on the LH side.

Preparation tool:

ST: VARIABLE OPEN WRENCH (09922-10010)

Courtesy of SUBARU OF AMERICA, INC.

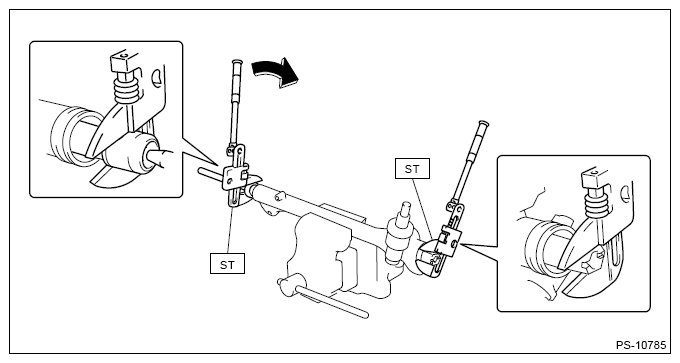

Use the ST to secure the steering rack on the LH side (width across flat portion) and remove the tie-rod on the RH side.
Preparation tool:

ST: VARIABLE OPEN WRENCH (09922-10010)

Courtesy of SUBARU OF AMERICA, INC.
