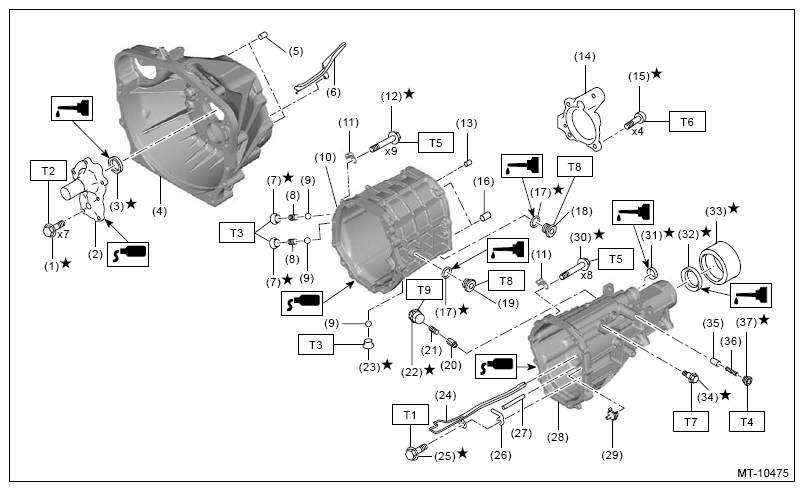

Components With Torque Specifications: Transmission
WARNING: This page is about a different variant/trim than selected.
| (1) | Bolt |
| (2) | Front bearing retainer |
| (3) | Oil seal |
| (4) | Clutch housing |
| (5) | Knock pin |
| (6) | Oil receiver pipe |
| (7) | Head straight screw plug |
| (8) | Spring |
| (9) | Ball |
| (10) | Transmission case |
| (11) | Clamp |
| (12) | Bolt |
| (13) | Knock pin |
| (14) | Rear bearing retainer |
| (15) | Bolt |
| (16) | Knock pin |
| (17) | Gasket |
| (18) | Drain plug |
| (19) | Filler plug |
| (20) | Lock ball pin |
| (21) | Compression spring |
| (22) | Holder |
| (23) | Head straight screw plug |
| (24) | Oil guide No. 1 |
| (25) | Bolt |
| (26) | Stopper plate |
| (27) | Straight pin |
| (28) | Extension case |
| (29) | Oil guide No. 2 |
| (30) | Bolt |
| (31) | Oil seal |
| (32) | Extension case oil seal |
| (33) | Dust cover |
| (34) | Bolt |
| (35) | Lock ball pin |
| (36) | Compression spring |
| (37) | Head straight screw plug |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8.5 (0.9, 6.3)
T2: 17 (1.7, 12.5)
T3: 19 (1.9, 14.0)
T4: 24.5 (2.5, 18.1)
T5: 29 (3.0, 21.4)
T6: 30 (3.1, 22.1)
T7: 31 (3.2, 22.9)
T8: 37 (3.8, 27.3)
T9: 39.2 (4.0, 28.9)
