High-Pressure Fuel Delivery Pipe Assembly

CAUTION:

• Be careful not to spill fuel.
• Catch the fuel from the pipes using a container or cloth.

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Perform the steps below to remove the air intake boot, and place it aside so that it does not interfere with the work.
   CAUTION: Do not disconnect the PCV hose No. 2 (a).
   1. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
   2. Loosen the clamp, remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose No. 2 (a).

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>REMOVAL .
4. Remove the fuel pipe insulator No. 1, fuel pipe insulator No. 2 and fuel pipe insulator No. 3. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INSULATOR>REMOVAL .

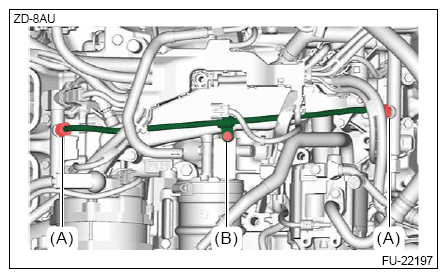

5. Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.
