Engine Cooling System: Radiator: Removal

CAUTION:

• The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
• If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Collect the refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
   NOTE: This operation is required only when the radiator and the condenser assembly are removed as a single unit.
3. Perform the steps below to remove the air intake boot, and place it aside so that it does not interfere with the work.
   CAUTION: Do not disconnect the PCV hose No. 2 (a).
   1. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
   2. Loosen the clamp, remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose No. 2 (a).

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the reservoir tank. Ref. to COOLING (H4DO)>RESERVOIR TANK>REMOVAL .
5. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .
6. Remove the air intake duct and air intake plate. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
7. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
8. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL>FRONT EXHAUST PIPE .
9. Disconnect radiator outlet hose.

   Courtesy of SUBARU OF AMERICA, INC.

10. Remove the bracket (A).
11. Remove the radiator inlet hose No. 1, filler assembly, and over flow hose as a single unit.

    Courtesy of SUBARU OF AMERICA, INC.

12. Remove the lock assembly front hood. Ref. to SECURITY AND LOCKS>FRONT HOOD LOCK ASSEMBLY>REMOVAL>HOOD LOCK ASSEMBLY .
13. Remove the clip securing the cable assembly front hood, and place the cable assembly front hood aside so that it does not interfere with the work.

    Courtesy of SUBARU OF AMERICA, INC.

14. Remove the panel complete, radiator center.

    Courtesy of SUBARU OF AMERICA, INC.

15. Disconnect the connector from the radiator main fan harness and radiator sub fan harness.
16. Open the claw on the clip and remove the bulkhead wiring harness.
    NOTE: During installation, mark the installation position of the bulkhead wiring harness based on the clip.

    Courtesy of SUBARU OF AMERICA, INC.

17. Remove the radiator upper bracket RH.

    Courtesy of SUBARU OF AMERICA, INC.

18. Remove the radiator upper bracket LH.

    Courtesy of SUBARU OF AMERICA, INC.

19. Remove the air guide RH and the air guide LH.

    Courtesy of SUBARU OF AMERICA, INC.

20. When the condenser assembly is not removed

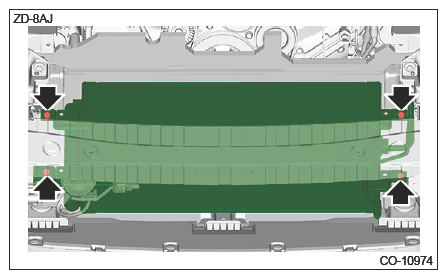

    1. Remove the bolts which hold the condenser assembly to the radiator.

       Courtesy of SUBARU OF AMERICA, INC.

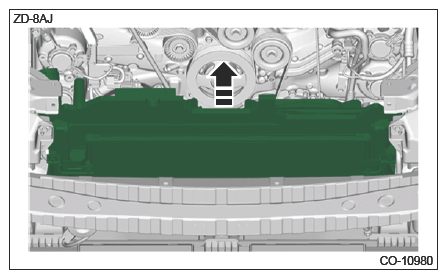

    2. Remove the radiator and the radiator fan & fan motor assembly as an assembly.
       CAUTION:

       • Be careful not to damage the condenser assembly and radiator fins.
       • If a damaged fin is found, repair it using a thin screwdriver.

       Courtesy of SUBARU OF AMERICA, INC.

    3. Remove the radiator lower cushion.
       NOTE: Perform this procedure only when required.

    Courtesy of SUBARU OF AMERICA, INC.

21. When removing the condenser assembly too
    1. Disconnect the connector from ambient sensor.
    2. Remove the clip securing the bulkhead wiring harness.

       Courtesy of SUBARU OF AMERICA, INC.

    3. Disconnect the hose pressure discharge and the pipe evaporator cooling from the condenser assembly. Ref. to AIR CONDITIONER>CONDENSER>REMOVAL .

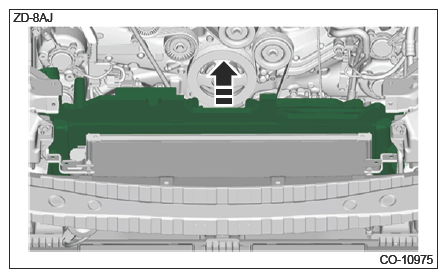

    4. Remove the radiator, radiator fan & fan motor assembly and condenser assembly as a single unit.
       CAUTION:

       • Be careful not to damage the condenser assembly and radiator fins.
       • If a damaged fin is found, repair it using a thin screwdriver.

       Courtesy of SUBARU OF AMERICA, INC.

    5. Remove the condenser assembly from the radiator. Ref. to AIR CONDITIONER>CONDENSER>REMOVAL .
    6. Remove the radiator lower cushion.
       NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
