Engine Cooling System: Radiator: Assembly

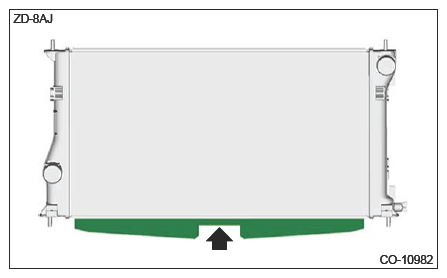

  1. Attach the radiator lower gasket.
    CAUTION: Always use a new radiator lower gasket.
    NOTE: As the width is the same as with the radiator, attach it along the groove.
    G16524383Courtesy of SUBARU OF AMERICA, INC.

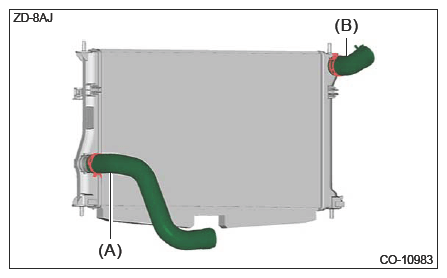

  2. Install the radiator outlet hose (A) and radiator inlet hose No. 2 (B).
    G16524382Courtesy of SUBARU OF AMERICA, INC.
  3. Install the radiator fan and fan motor assembly. Ref. to COOLING (H4DO)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>INSTALLATION .
