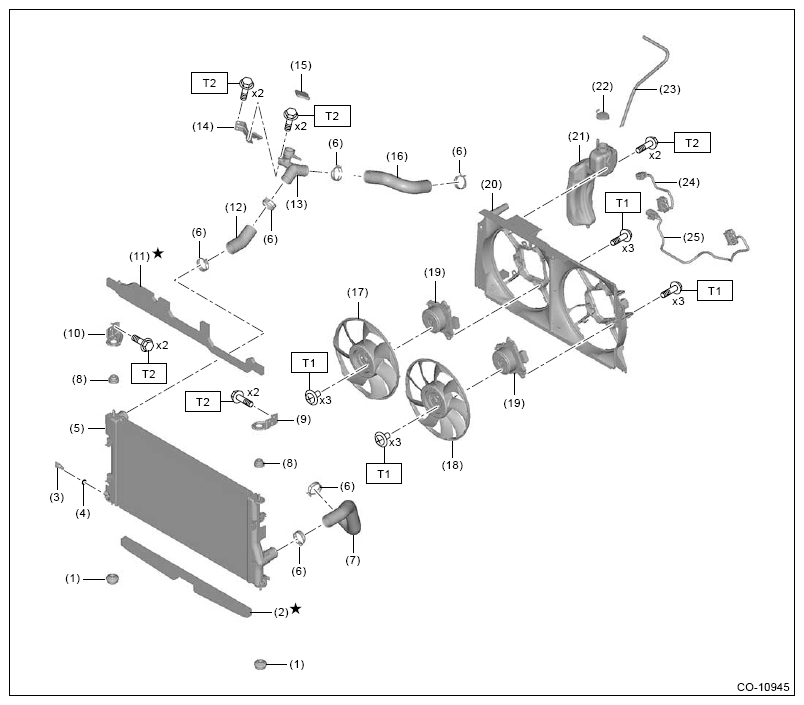

Radiator & Radiator Fan
| (1) | Radiator lower cushion |
| (2) | Radiator lower gasket |
| (3) | Radiator drain plug |
| (4) | O-ring |
| (5) | Radiator |
| (6) | Radiator hose clip |
| (7) | Radiator outlet hose |
| (8) | Radiator upper cushion |
| (9) | Radiator upper bracket LH |
| (10) | Radiator upper bracket RH |
| (11) | Radiator upper gasket |
| (12) | Radiator inlet hose No. 2 |
| (13) | Filler ASSY |
| (14) | Bracket |
| (15) | Radiator cap |
| (16) | Radiator inlet hose No. 1 |
| (17) | Radiator main fan |
| (18) | Radiator sub fan |
| (19) | Fan motor ASSY |
| (20) | Radiator fan shroud |
| (21) | Reservoir tank |
| (22) | Reservoir tank cap |
| (23) | Over flow hose |
| (24) | Radiator main fan harness |
| (25) | Radiator sub fan harness |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.8 (0.4, 2.8)
T2: 7.5 (0.8, 5.5)
