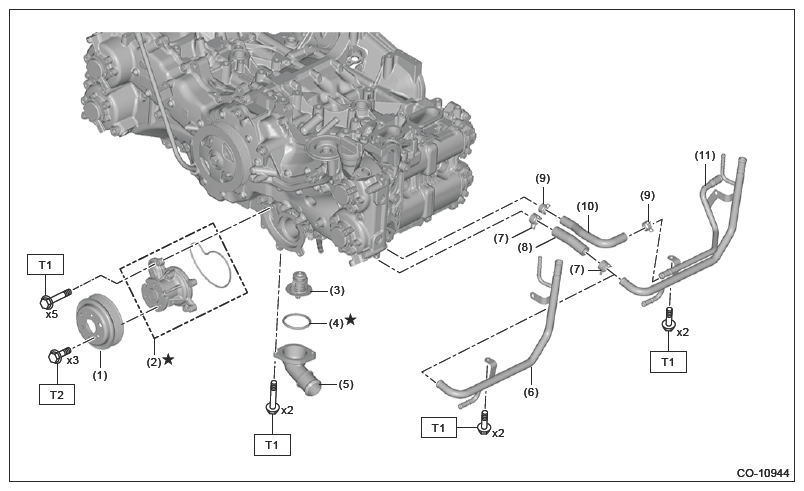

Engine Cooling System 2
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Water pump pulley |
| (2) |
Water pump ASSY |
| (3) |
Thermostat |
| (4) |
Gasket |
| (5) |
Thermostat cover |
| (6) |
Water pipe (MT model) |
| (7) |
Clip |
| (8) |
Water hose |
| (9) |
Clip |
| (10) |
Water hose |
| (11) |
Water pipe (AT model) |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 14 (1.4, 10.3)
