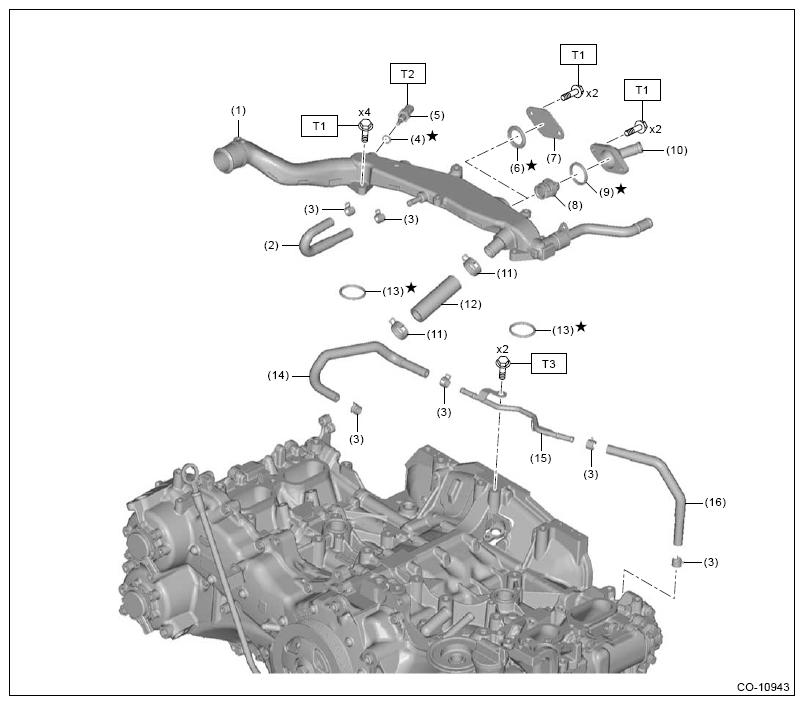

Engine Cooling System 1
| (1) | Water tank pipe ASSY |
| (2) | Preheater hose |
| (3) | Clip |
| (4) | Gasket |
| (5) | Engine coolant temperature sensor |
| (6) | Gasket (MT model) |
| (7) | Cover (MT model) |
| (8) | Thermostat (AT model) |
| (9) | Gasket (AT model) |
| (10) | Thermostat cover (AT model) |
| (11) | Clip |
| (12) | Water hose |
| (13) | O-ring |
| (14) | Preheater hose |
| (15) | Preheater pipe |
| (16) | Preheater hose |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
T3: 19 (1.9, 14.0)
