Magnet Switch

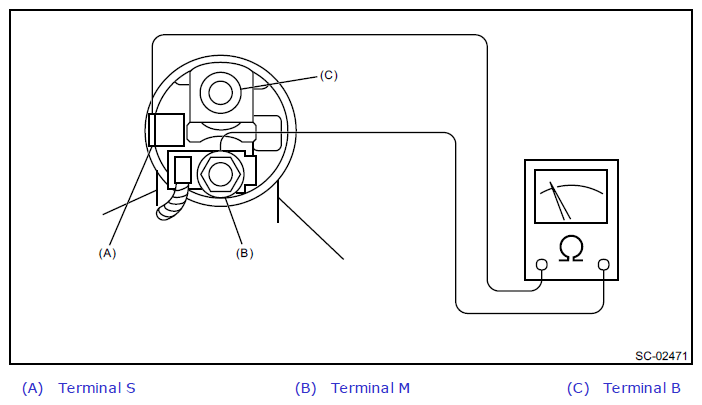

Check the resistance between terminals shown in the following table.
 Courtesy of SUBARU OF AMERICA, INC.
|
| (A) |
Terminal S |
| (B) |
Terminal M |
| (C) |
Terminal B |
| Terminals |
Standard |
| Terminal S - terminal M |
1 Ω or less |
| Terminal S - Ground |
1 Ω or less |
| Terminal M - terminal B |
1 MΩ or more |
