Parking Brake Actuator

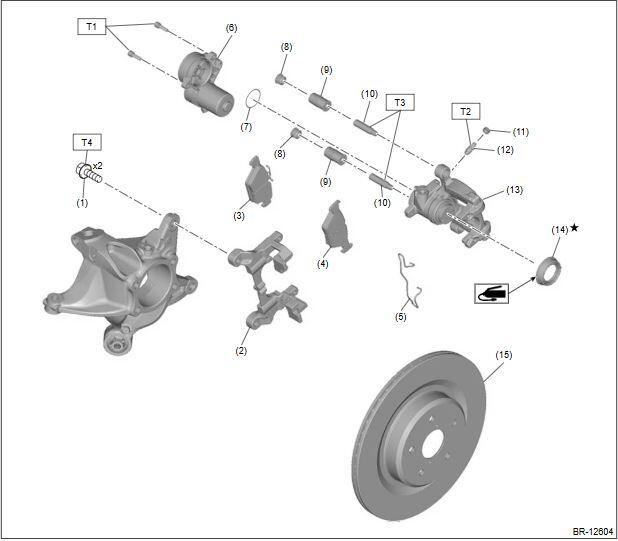

Fig 1: Parking Brake Actuator Components Location

G00680242

Courtesy of SUBARU OF AMERICA, INC.

(1)

Mounting bolt

(2)

Support rear disc brake

(3)

Pad COMPL inner

(4)

Pad COMPL outer

(5)

Pad clip

(6)

Parking brake actuator⁽¹⁾⁽²⁾

(7)

O-ring⁽²⁾

(8)

Cap

(9)

Pin boot

(10)

Guide pin rear brake

(11)

Bleeder cap

(12)

Bleeder screw

(13)

Caliper body⁽²⁾

(14)

Boot piston

(15)

Brake disc rear

⁽¹⁾	The component cannot be reused when the emergency release of parking brake was performed or when the actuator has a malfunction.

⁽²⁾	When the parking brake actuator or caliper body is replaced, replace the O-ring with a new part provided.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 115 (11.7, 84.8)
