Front Wiper

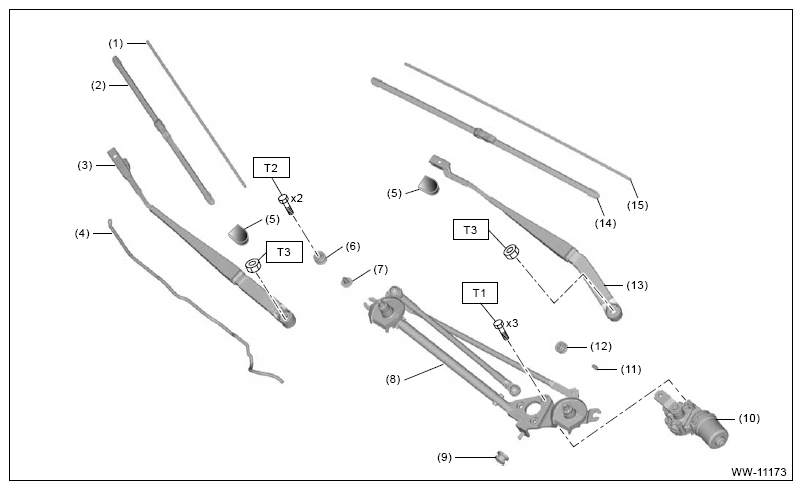

Fig 1: Front Wiper Components Location

G16441371

Courtesy of SUBARU OF AMERICA, INC.

(1)	Rubber windshield wiper assistor
(2)	Blade windshield wiper assistor
(3)	Arm ASSY windshield wiper assistor
(4)	Hose wiper arm washer
(5)	Cover windshield wiper arm
(6)	Rubber
(7)	Collar
(8)	Link ASSY windshield wiper
(9)	Cushion windshield wiper
(10)	Motor ASSY windshield wiper
(11)	Collar
(12)	Rubber
(13)	Arm ASSY windshield wiper driver
(14)	Blade windshield wiper driver
(15)	Rubber windshield wiper driver

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
