Related Lines, More Than 52 Ω And Less Than 62 Ω ((H)_Advanced Safety Can_Camera Control Module)

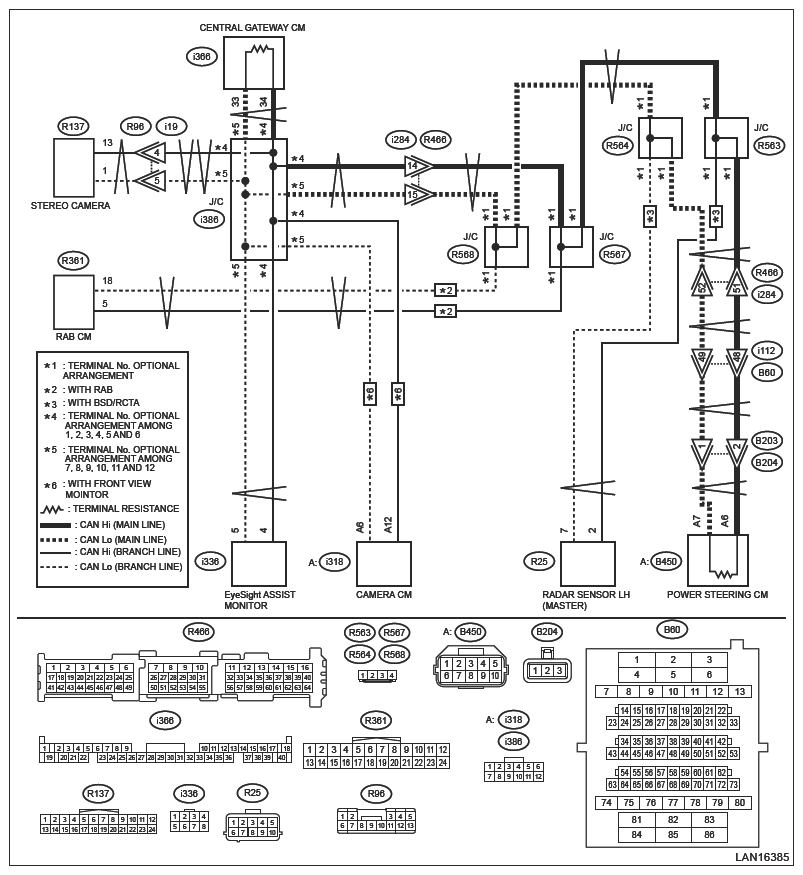

Wiring diagram:

CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the camera Control Module connector.
   3. Using a tester, measure the resistance between terminals in camera Control Module connector.

      Connector & terminal

      (i318) No. 6 - (i318) No. 12:

   Is the resistance 400 Ω or more?

   Yes:  Related line between camera Control Module and main wiring harness is open, or main wiring harness is open at two places or more.

   No:  Go to  2.

2. CHECK RELATED LINES  .
   1. Disconnect the central gateway Control Module connector.
   2. Using a tester, measure the resistance between camera Control Module connector and central gateway Control Module connector.

      Connector & terminal

      (i318) No. 12 - (i366) No. 34:

      (i318) No. 6 - (i366) No. 33:

   Is the resistance 10 Ω or more?

   Yes:  Repair or replace the open circuit portion of camera Control Module related lines.

   No:  Check DTC of 360-degree Surround View Monitor (Multi View Monitor). Ref. to 360-DEGREE SURROUND VIEW MONITOR/MULTI VIEW MONITOR (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
