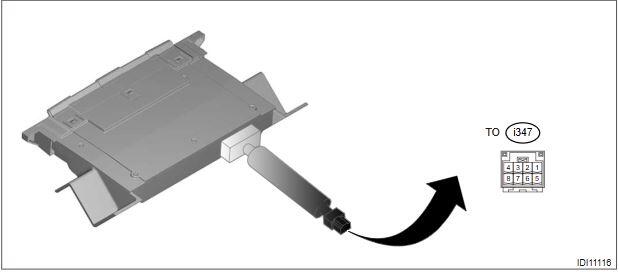

Driver Monitoring Unit
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (i347) No. 1 ←→ Chassis ground | Battery power supply | Always | 11 - 14 V |
| (i347) No. 2 | - | - | - |
| (i347) No. 3 | - | - | - |
| (i347) No. 4 ←→ Chassis ground | Body CAN H | IG ON | Pulse generation |
| (i347) No. 5 | - | - | - |
| (i347) No. 6 | - | - | - |
| (i347) No. 7 ←→ Chassis ground | GND | Always | 0 V |
| (i347) No. 8 ←→ Chassis ground | Body CAN L | IG ON | Pulse generation |
