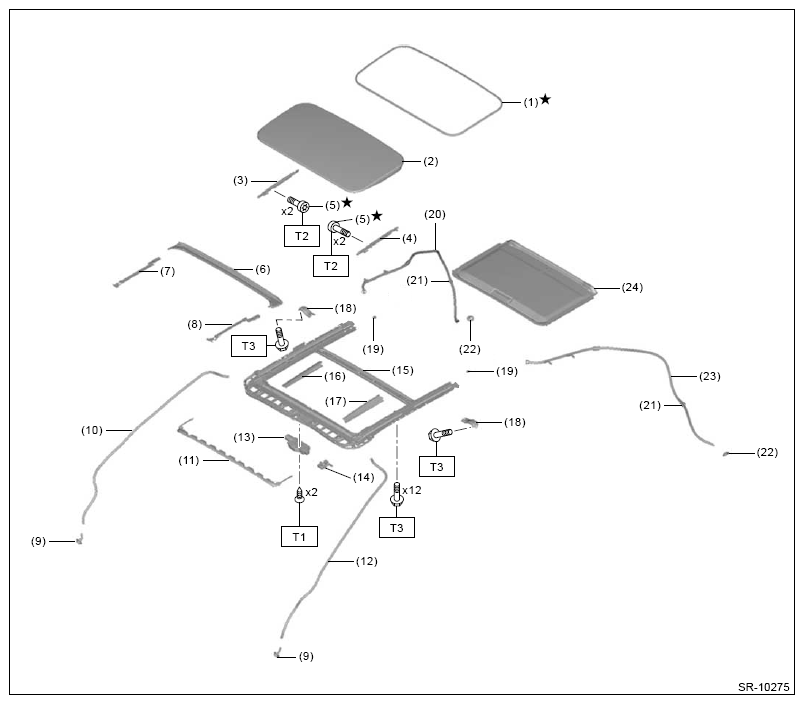

Components With Torque Specifications
| (1) | Weather strip glass sunroof |
| (2) | Lid ASSY |
| (3) | Cable ASSY RH |
| (4) | Cable ASSY LH |
| (5) | TORX® screw |
| (6) | Drain plate |
| (7) | Link drain RH |
| (8) | Link drain LH |
| (9) | Grommet |
| (10) | Tube drain front RH |
| (11) | Deflector |
| (12) | Tube drain front LH |
| (13) | Motor ASSY |
| (14) | Harness ASSY |
| (15) | Rail ASSY |
| (16) | Cover lid RH |
| (17) | Cover lid LH |
| (18) | Bracket sunroof |
| (19) | Stopper rubber |
| (20) | Tube drain rear RH |
| (21) | Clip holder |
| (22) | Grommet |
| (23) | Tube drain rear LH |
| (24) | Shade ASSY |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3 (0.3, 2.2)
T2: 4.5 (0.5, 3.3)
T3: 6 (0.6, 4.4)
