M/T Clutch System: Flywheel: Removal

CAUTION: Do not wash the pilot bearing since it is filled with grease.
  1. Remove the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>REMOVAL .
  3. Using the ST. fasten the flywheel.
    NOTE: Use bolts with M8xP1.25 and a bolt length of approx. 15 mm for securing ST and the flywheel.

    Preparation tool:

    ST: CRANKSHAFT STOPPER (498497100)

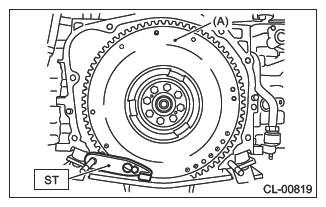

    G16341380Courtesy of SUBARU OF AMERICA, INC.
    (A) Flywheel
  4. Remove the flywheel and crankshaft position sensor plate.
    G16526382Courtesy of SUBARU OF AMERICA, INC.
    (A) Flywheel
    (B) Crankshaft position sensor plate
  5. Remove ST (CRANKSHAFT STOPPER).
  6. Using the pilot bearing puller or similar tool, remove the pilot bearings.
    NOTE: Perform this procedure only when required.

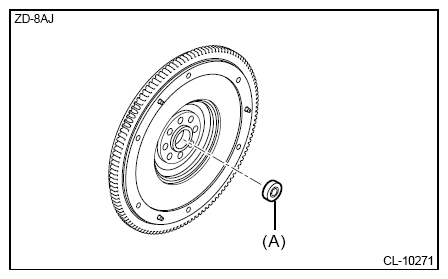

    G16526380Courtesy of SUBARU OF AMERICA, INC.
    (A) Pilot bearing
