Front Arm: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the arm assembly front.
    1. Remove the bolt and nut from the front axle housing.
    2. Lower the arm assembly front, and remove the ball stud from the front axle housing.
      CAUTION: Be careful not to damage the boot of the ball joint.

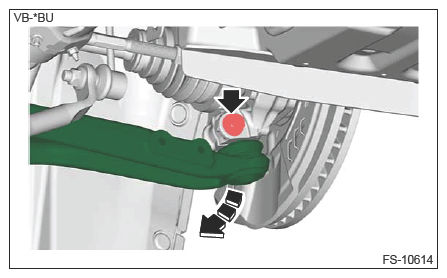

      G14601732Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts, and remove the front arm rear plate.

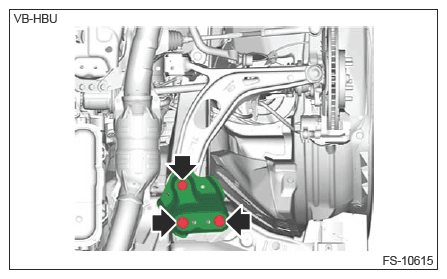

      G14601733Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the bolts and nuts to remove the arm assembly front.

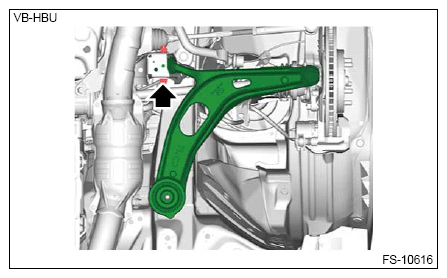

    G14601734Courtesy of SUBARU OF AMERICA, INC.
