Trailing Link: Removal

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the nut, and remove the adapter cord EPB or the cable assembly hand brake bracket.
    G14601789Courtesy of SUBARU OF AMERICA, INC.

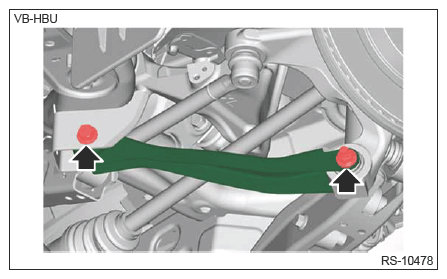

  3. Remove the bolts and nuts, and then remove the trailing link assembly rear.
    G14601790Courtesy of SUBARU OF AMERICA, INC.
