Inspection Of Clearance
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

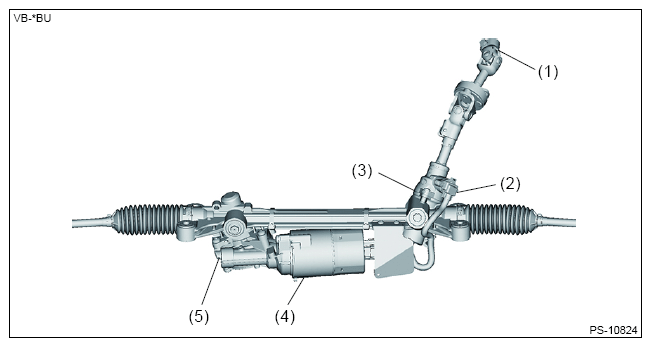

| Location | Minimum allowance mm (in) |
|---|---|
| (1) Universal joint column side yoke to Master cylinder (closest point of approach when the universal joint turns by 360°) | 5 (0.20) |
| (2) Torque sensor to Crossmember | 5 (0.20) |
| (3) Stub housing to Engine mount | 10 (0.39) |
| (4) Motor Control Module to Crossmember | There must be no contact |
| (5) Worm wheel housing to Crossmember | There must be no contact |
