Radiator Sub Fan and Fan Motor: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator fan control module (sub). Ref. to COOLING (H4DOTC)>RADIATOR FAN CONTROL UNIT>REMOVAL>RADIATOR FAN CONTROL MODULE (SUB) .

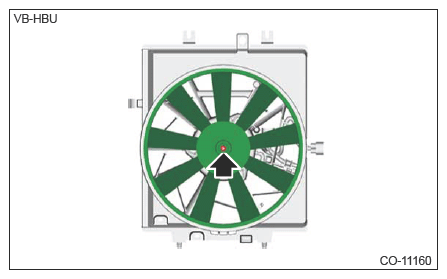

Remove the radiator sub fan from the fan motor (sub).
NOTE:
Remove the locking agent from the thread of the fan motor (sub).

Courtesy of SUBARU OF AMERICA, INC.

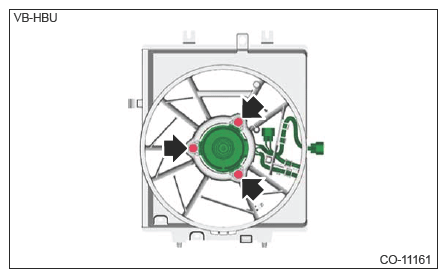

Remove the fan motor (sub) from the radiator sub fan shroud.

Courtesy of SUBARU OF AMERICA, INC.
