Radiator Main Fan and Fan Motor: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator fan control module (main). Ref. to COOLING (H4DOTC)>RADIATOR FAN CONTROL UNIT>REMOVAL>RADIATOR FAN CONTROL MODULE (MAIN) .

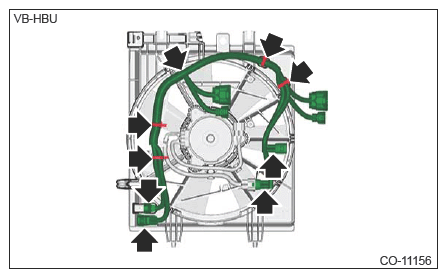

  2. Remove the bulkhead wiring harness.
    G14601439Courtesy of SUBARU OF AMERICA, INC.

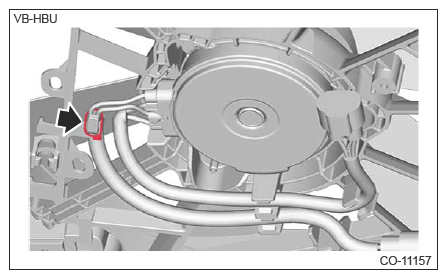

  3. Remove the tie-wrap securing the fan motor (main) harness.
    G14601440Courtesy of SUBARU OF AMERICA, INC.

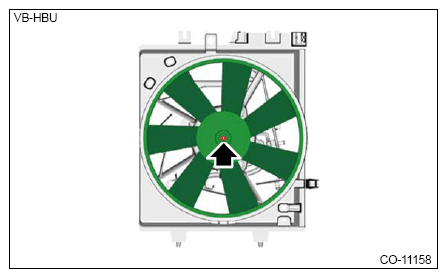

  4. Remove the radiator main fan from the fan motor (main).
    NOTE:

    Remove the locking agent from the thread of the fan motor (main).

    G14601441Courtesy of SUBARU OF AMERICA, INC.

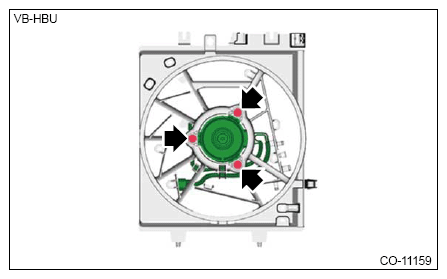

  5. Remove the fan motor (main) from the radiator main fan shroud.
    G14601442Courtesy of SUBARU OF AMERICA, INC.
