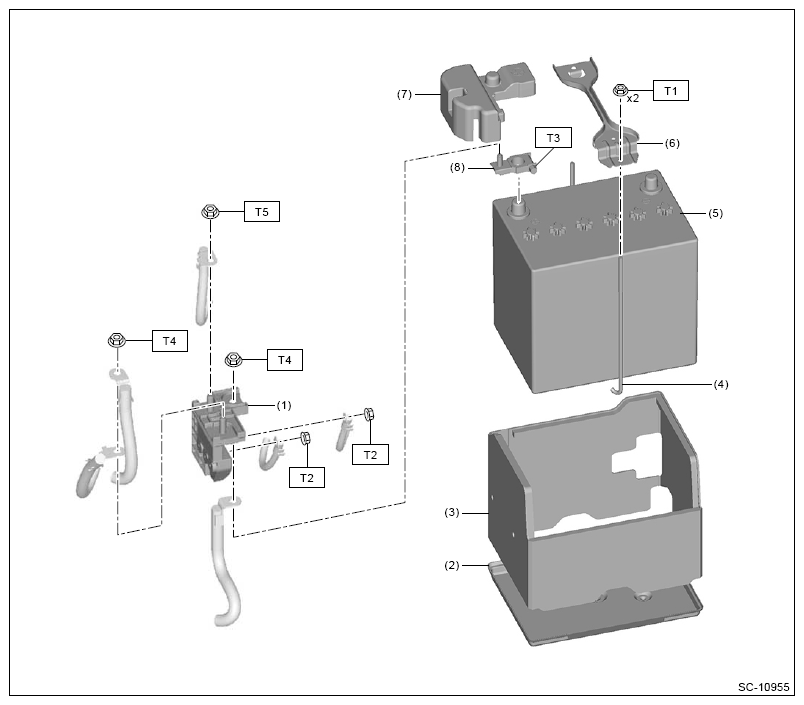

Battery, Slow Blow Fuse
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Slow blow fuse |
| (2) |
Battery tray |
| (3) |
Battery cover |
| (4) |
Rod |
| (5) |
Battery |
| (6) |
Battery holder |
| (7) |
Boot |
| (8) |
Terminal base |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.5 (0.4, 2.6)
T2: 5.5 (0.6, 4.1)
T3: 6 (0.6, 4.4)
T4: 7.5 (0.8, 5.5)
T5: 14 (1.4, 10.3)
