Electronic Parking Brake Model

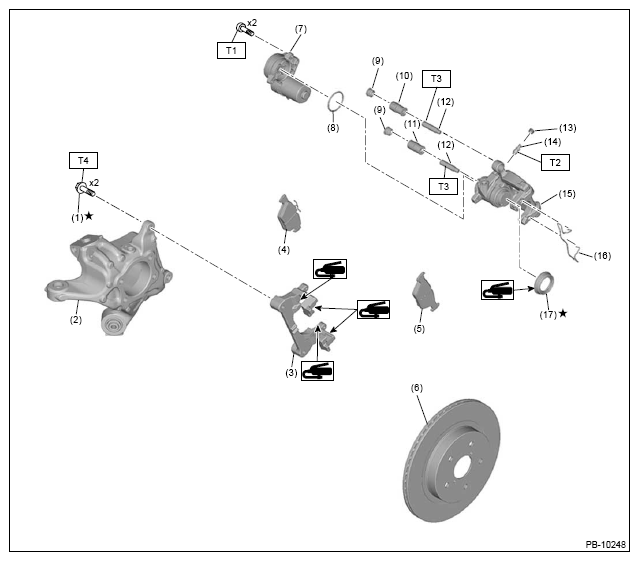

Fig 1: Parking Brake Components Location - Electronic Parking Brake Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

(1)

Mounting bolt

(2)

Rear axle housing

(3)

Support rear disc brake

(4)

Pad COMPL inner

(5)

Pad COMPL outer

(6)

Brake disc rear

(7)

Parking brake actuator⁽¹⁾⁽²⁾

(8)

O-ring⁽²⁾

(9)

Cap

(10)

Pin boot A

(11)

Pin boot B

(12)

Guide pin rear brake

(13)

Bleeder cap

(14)

Bleeder screw

(15)

Caliper body⁽²⁾

(16)

Pad clip

(17)

Boot piston

⁽¹⁾	Do not reuse it when the emergency release of parking brake was performed or when the actuator has a malfunction.

⁽²⁾	When replacing the parking brake actuator or the caliper body, always replace the O-ring with the supplied new part.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 73 (7.4, 53.8)

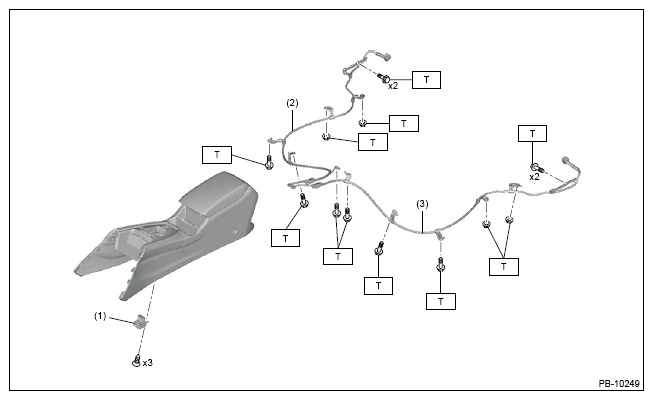

Fig 2: Parking Brake Components Location - Electronic Parking Brake Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
