Front Relay Control Module (Diagnostics): Electrical Component Location: Location

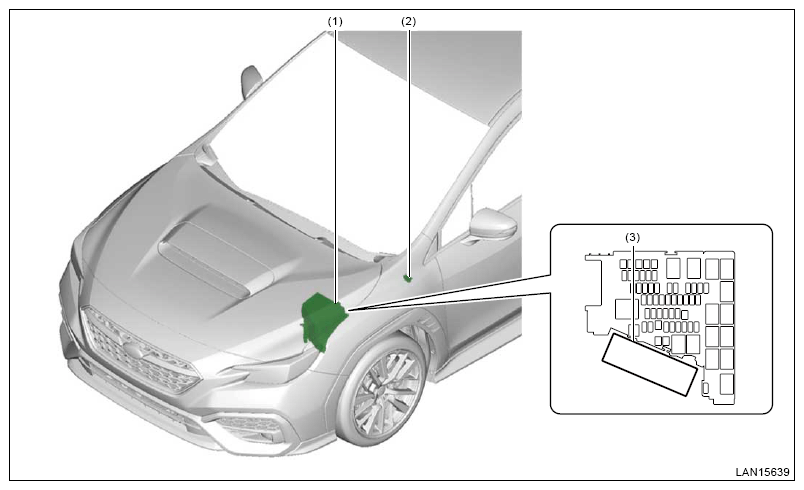

G16543205

Courtesy of SUBARU OF AMERICA, INC.

(1)	Main fuse box (M/B)
(2)	Data link connector
(3)	Front relay control module
