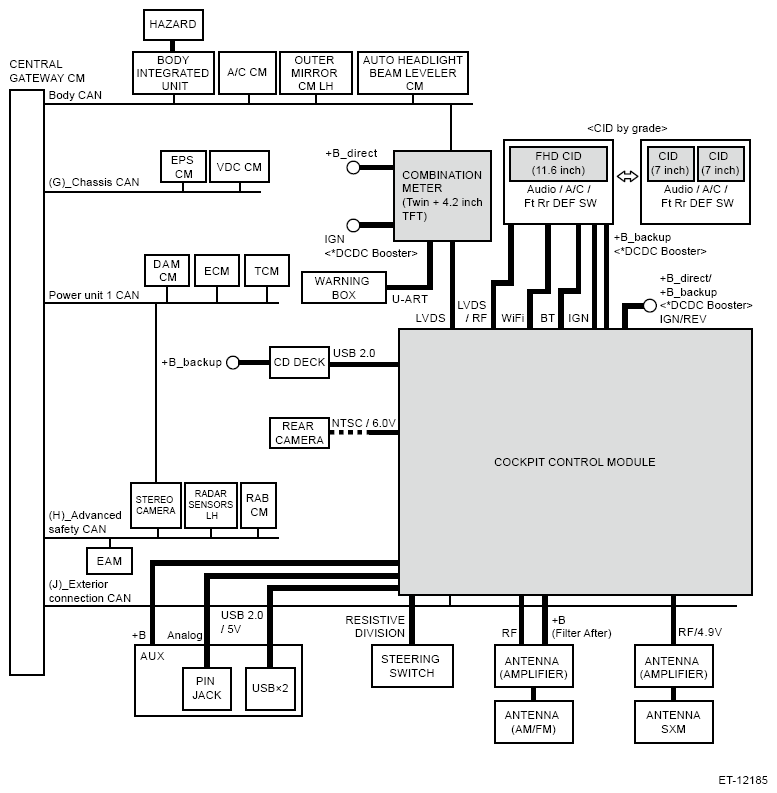

System Block Diagram

Courtesy of SUBARU OF AMERICA, INC.

WITHOUT AUDIO AMPLIFIER AND WITHOUT TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.
WITH AUDIO AMPLIFIER AND WITHOUT TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.
WITHOUT AUDIO AMPLIFIER AND WITH TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.
WITH AUDIO AMPLIFIER AND WITH TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.

Reference diagram for diagnostics with phenomenon

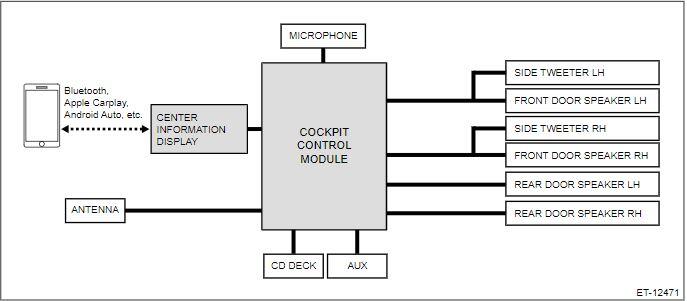

WITHOUT AUDIO AMPLIFIER AND WITHOUT TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.

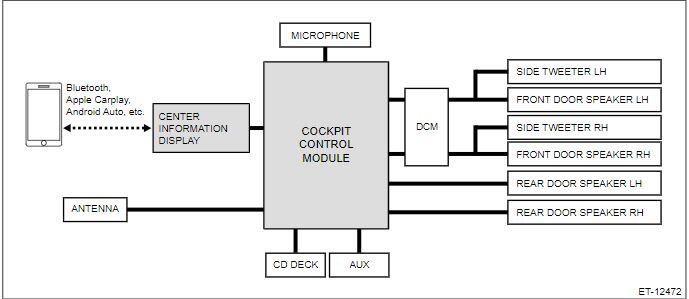

WITHOUT AUDIO AMPLIFIER AND WITH TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.

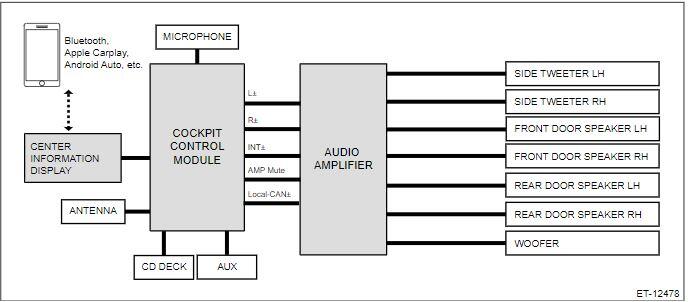

WITH AUDIO AMPLIFIER AND WITHOUT TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.

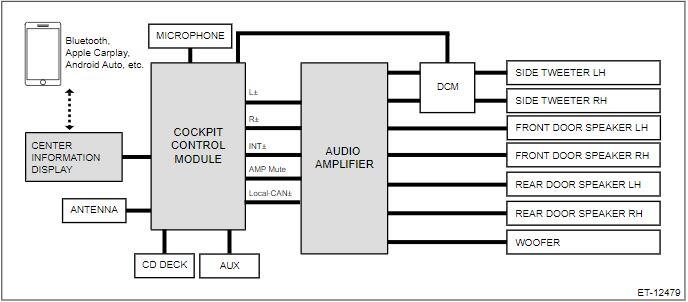

WITH AUDIO AMPLIFIER AND WITH TELEMATICS

Courtesy of SUBARU OF AMERICA, INC.
