A Part Of Function Does Not Operate: Notes

Wiring diagram:

Power seat system Ref. to WIRING SYSTEM>POWER SEAT SYSTEM>WIRING DIAGRAM .

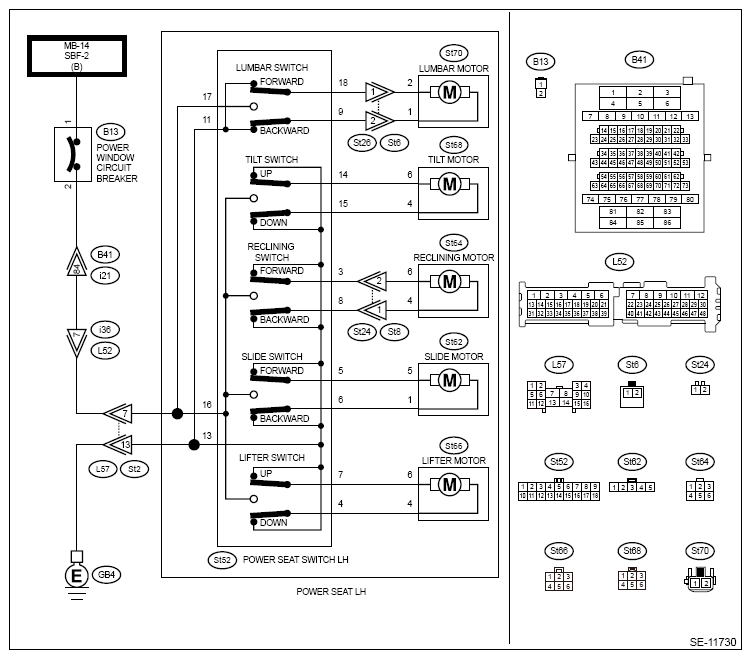

• Except for RECARO® seat

  Courtesy of SUBARU OF AMERICA, INC.

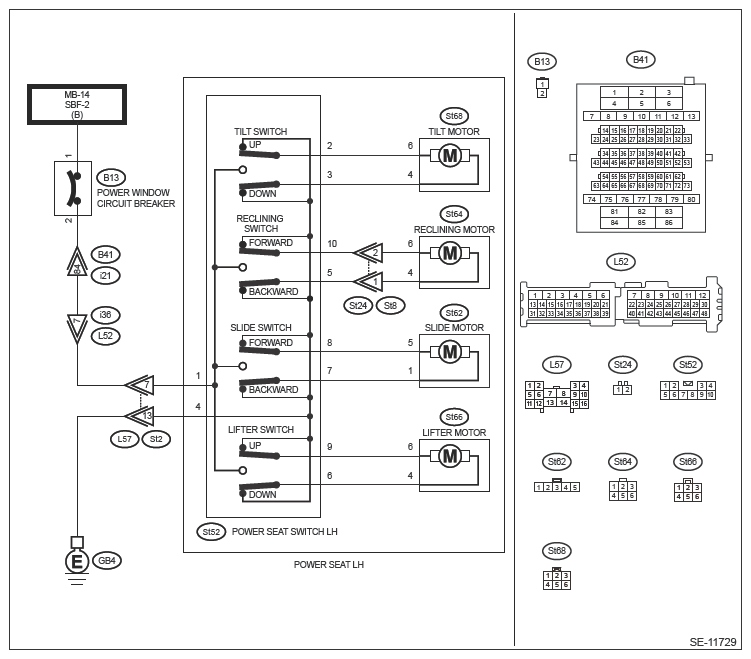

• RECARO® seat

  Courtesy of SUBARU OF AMERICA, INC.
