Front Seat Belt

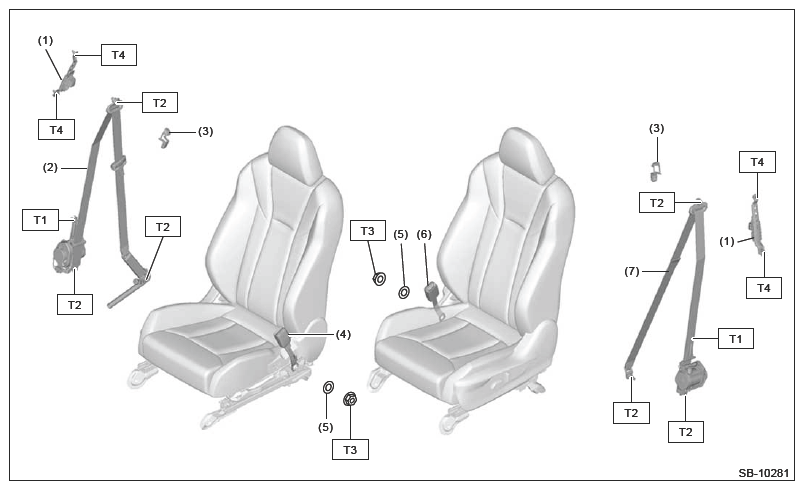

Fig 1: Front Seat Belt Components Location

G16540621

Courtesy of SUBARU OF AMERICA, INC.

(1)

Adjuster shoulder anchor

(2)

Belt ASSY front OUT RH

(3)

Cover shoulder anchor

(4)

Belt ASSY front INN RH⁽¹⁾

(5)

Spring wave washer

(6)

Belt ASSY front INN LH⁽¹⁾

(7)

Belt ASSY front OUT LH

⁽¹⁾	Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN .

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 30 (3.1, 22.1)

T3: 38 (3.9, 28.0)

T4: 53 (5.4, 39.1)
