Curtain Airbag Module
Curtain Airbag Module

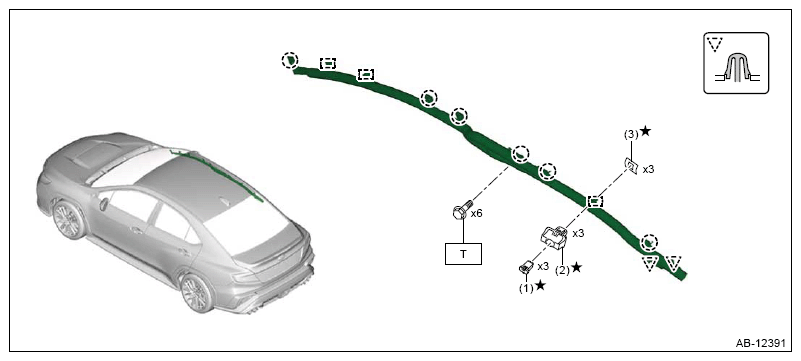

Fig 1: Curtain Airbag Module Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Clip pin
(2)
Clip bushing
(3)
Spacer
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
