Sunroof Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>REMOVAL .
  3. Remove the sunroof switch.
    1. Release the claws and guides, and remove the frame.
      CAUTION: Be careful not to pull the harness.
      G12399108Courtesy of SUBARU OF AMERICA, INC.
      NOTE: The frame cannot be removed.

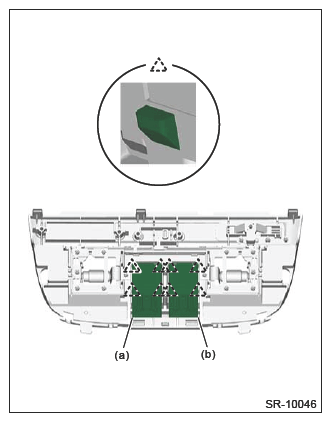

    2. Release the claws, and then remove the sunroof switch.
      G16343974Courtesy of SUBARU OF AMERICA, INC.
      (a) Sunroof switch (tilt)
      (b) Sunroof switch (slide)
