Driver's Seat
- Manual seat
Courtesy of SUBARU OF AMERICA, INC.

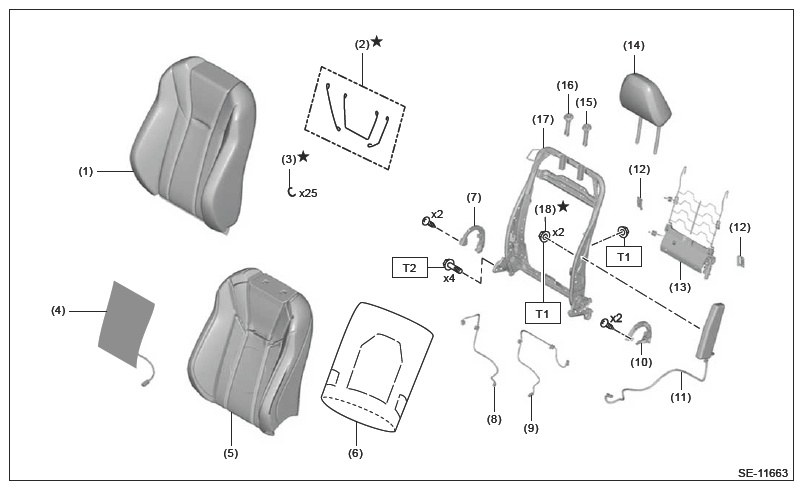

(1) Cover backrest front seat (2) Wire set backrest front seat (3) Hog ring (4) Seat heater unit backrest (5) Seat pad ASSY backrest (6) Cover silencer (7) Hinge base cover inside (8) Knob hinge reclining (9) Hinge base cover outside (10) Side airbag module (11) Protector spring (12) Flat mat & hook spring ASSY (13) Headrest ASSY (14) Bushing headrest lock (15) Bushing headrest free (16) Seat frame ASSY backrest (17) Self-locking nut Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .
Courtesy of SUBARU OF AMERICA, INC.

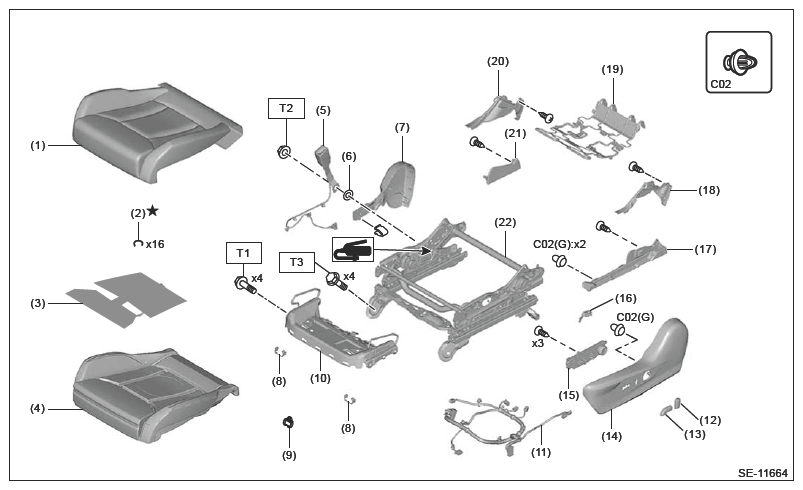

(1) Cover cushion front seat (2) Hog ring (3) Seat heater unit cushion (4) Seat pad ASSY cushion (5) Belt ASSY front INN(1) (6) Spring wave washer (7) Cover hinge inside (8) Harness clip (9) Cap end (10) Lever towel bar (11) TORX® bolt (12) TORX® bolt (13) Harness ASSY cushion (14) Cover hinge outside (15) Lever lifter (16) Cover riser BRKT INN (17) Cover INN cushion outside (18) Panel front wire (19) Cover INN cushion inside (20) Cover riser link (21) Seat frame ASSY cushion (22) Slide rail ASSY INN (23) Slide rail ASSY OUT (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 17.6 (1.8, 13.0)
T2: 38 (3.9, 28.0)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- Power seat
Courtesy of SUBARU OF AMERICA, INC.

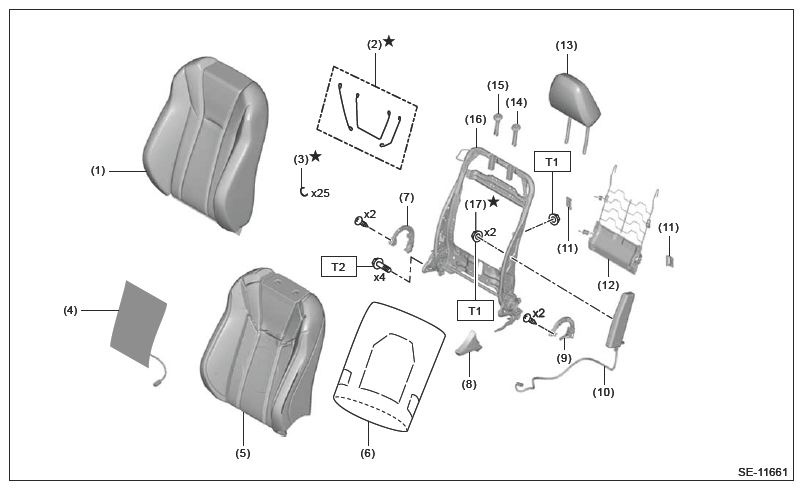

(1) Cover backrest front seat (2) Wire set backrest front seat (3) Hog ring (4) Seat heater unit backrest (5) Seat pad ASSY backrest (6) Cover silencer (7) Hinge base cover inside (8) Harness ASSY backrest (9) Harness ASSY backrest (10) Hinge base cover outside (11) Side airbag module (12) Protector spring (13) Flat mat & hook spring ASSY (14) Headrest ASSY (15) Bushing headrest lock (16) Bushing headrest free (17) Seat frame ASSY backrest (18) Self-locking nut Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .
Courtesy of SUBARU OF AMERICA, INC.

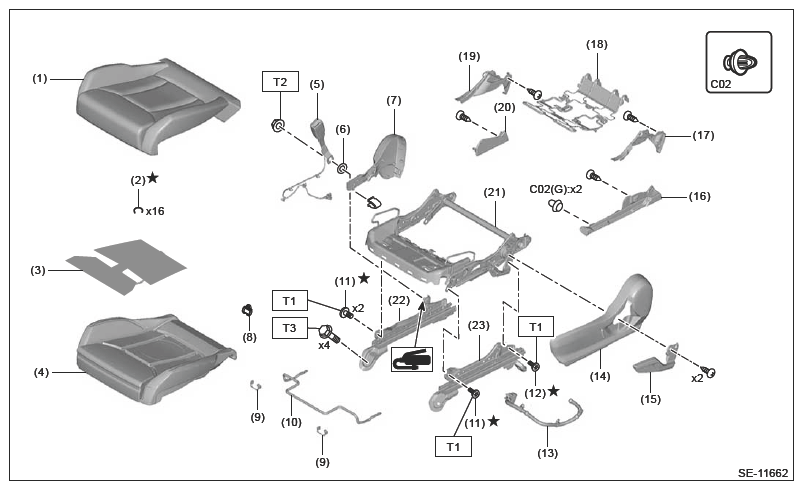

(1) Cover cushion front seat (2) Hog ring (3) Seat heater unit cushion (4) Seat pad ASSY cushion (5) Belt ASSY front INN(1) (6) Spring wave washer (7) Cover hinge inside (8) Cap end (9) Harness clip (10) Panel ASSY cushion (11) Harness ASSY cushion (12) Knob power seat (13) Knob power seat (14) Cover hinge outside (15) Switch ASSY power seat (16) Cover bracket (17) Cover riser BRKT INN (18) Cover INN cushion outside (19) Panel front wire (20) Cover INN cushion inside (21) Cover riser link (22) Seat frame ASSY cushion (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 38 (3.9, 28.0)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- RECARO® seat x20
Courtesy of SUBARU OF AMERICA, INC.

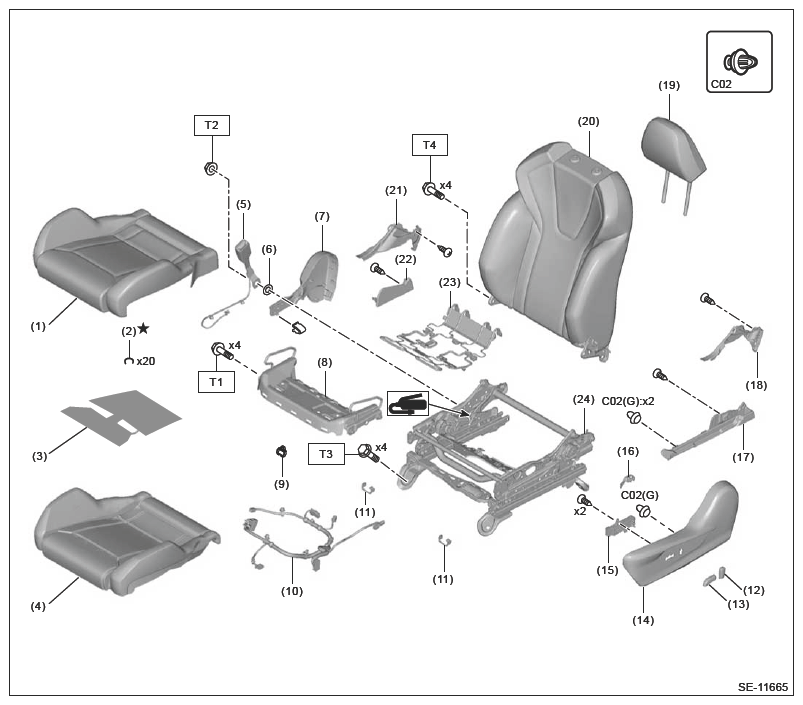

(1) Cushion ASSY front seat (2) Hog ring (3) Seat heater unit cushion (4) Seat pad ASSY cushion (5) Belt ASSY front INN (6) Spring wave washer (7) Cover hinge inside (8) Panel ASSY cushion (9) Harness clip (10) Harness ASSY cushion (11) Cap end (12) Knob power seat (13) Knob power seat (14) Cover hinge outside (15) Switch ASSY power seat (16) Cover bracket (17) Cover riser BRKT INN (18) Cover INN cushion outside (19) Headrest ASSY (20) Backrest ASSY front seat (21) Cover INN cushion inside (22) Cover riser link (23) Panel front wire (24) Seat frame ASSY cushion Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 38 (3.9, 28.0)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
T4: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .
*: Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN .
