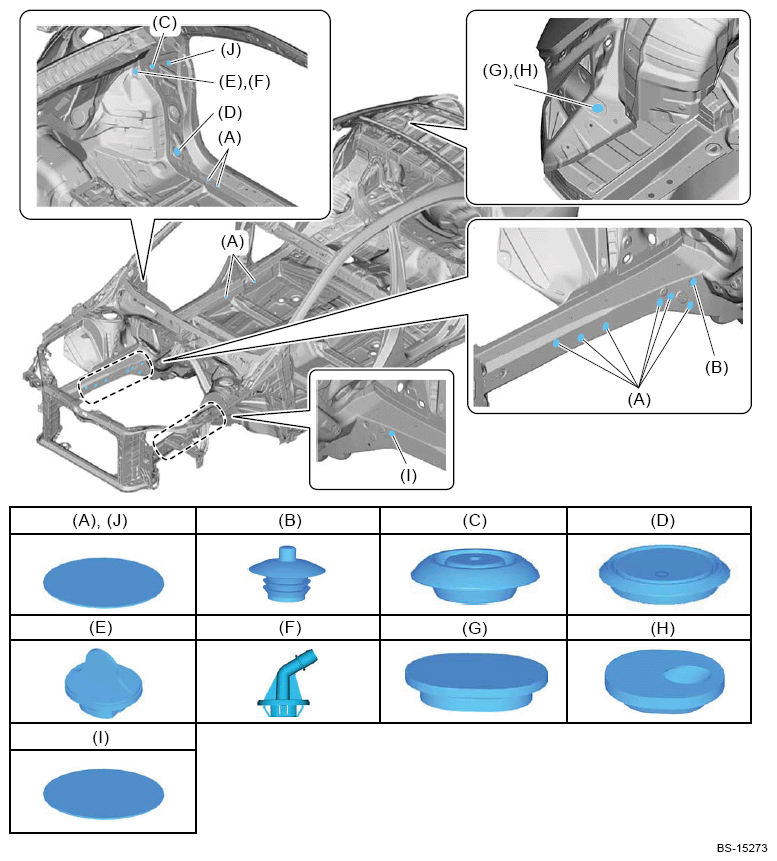

Oblique View
NOTE:
Illustration indicates the RH side. The structure of LH side is symmetrical.
| (A) | Grommet sheet |
| (B) | Plug |
| (C) | Plug |
| (D) | Plug |
| (E) | Plug (model without sunroof) |
| (F) | Plug (model with sunroof) |
| (G) | Plug (model without sunroof) |
| (H) | Plug (model with sunroof) |
| (I) | Grommet sheet (without CVTF cooler (air cool)) (left side only) |
| (J) | Grommet sheet (right side only) |
