Trunk Opener Button: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the garnish assembly trunk. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK LID GARNISH>REMOVAL .

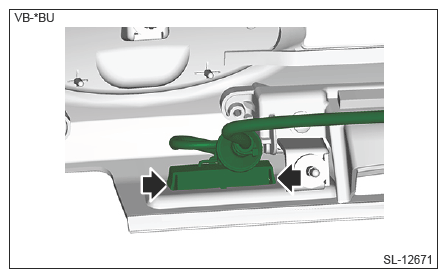

  3. Release the claws and remove the trunk opener button.
    NOTE: When using a flat tip screwdriver, apply protective tape or cloth so as not to cause damage.
    G14612847Courtesy of SUBARU OF AMERICA, INC.
