Model Without Wiper Arm Washer

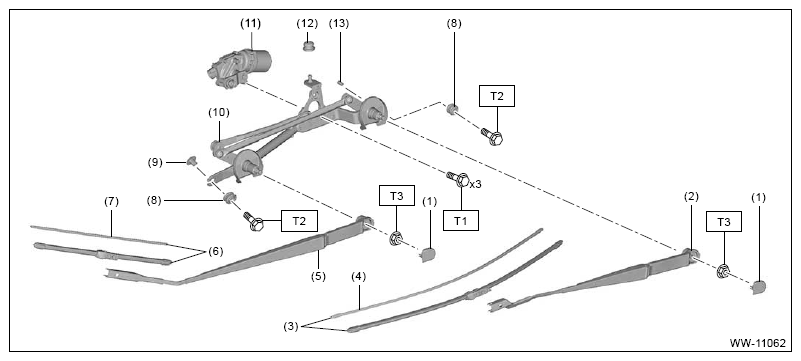

Fig 1: Front Wiper Components Location (Model Without Wiper Arm Washer)

Courtesy of SUBARU OF AMERICA, INC.

1	Cover windshield wiper arm
2	Arm ASSY windshield wiper driver
3	Blade ASSY windshield wiper driver
4	Rubber ASSY windshield wiper driver
5	Arm ASSY windshield wiper assistor
6	Blade ASSY windshield wiper assistor
7	Rubber ASSY windshield wiper assistor
8	Rubber
9	Collar RH
10	Link ASSY windshield wiper
11	Motor ASSY windshield wiper
12	Cushion windshield wiper
13	Collar LH

Tightening torque: N.m (kgf.m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
