Model With Wiper Arm Washer

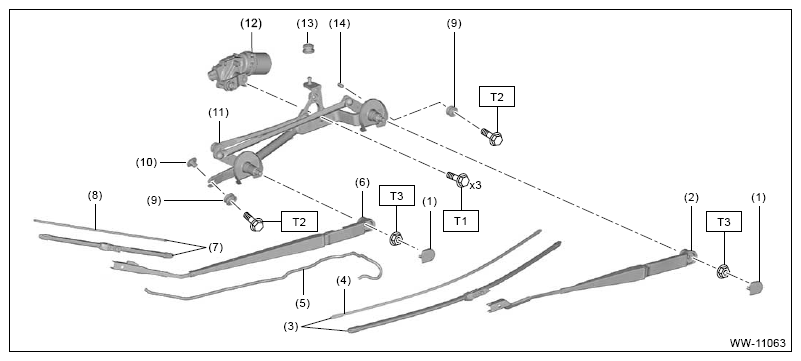

Fig 1: Front Wiper Components Location (Model With Wiper Arm Washer)

Courtesy of SUBARU OF AMERICA, INC.

1	Cover windshield wiper arm
2	Arm ASSY windshield wiper driver
3	Blade ASSY windshield wiper driver
4	Rubber ASSY windshield wiper driver
5	Hose wiper arm washer
6	Arm ASSY windshield wiper assistor
7	Blade ASSY windshield wiper assistor
8	Rubber ASSY windshield wiper assistor
9	Rubber
10	Collar RH
11	Link ASSY windshield wiper
12	Motor ASSY windshield wiper
13	Cushion windshield wiper
14	Collar LH

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
