Cockpit Control System (Diagnostics): Electrical Component Location: Location

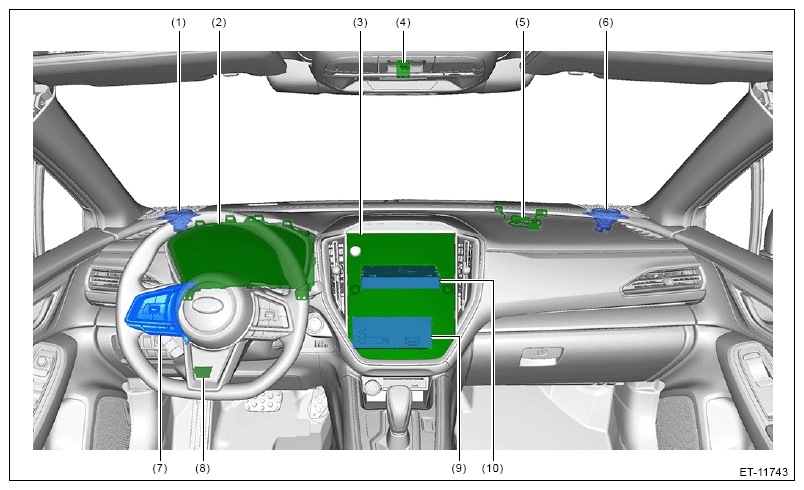

| (1) | Side tweeter LH |
| (2) | Combination meter |
| (3) | Center information display |
| (4) | Microphone |
| (5) | GPS antenna |
| (6) | Side tweeter RH |
| (7) | Satellite switch |
| (8) | Data link connector |
| (9) | Cockpit control module |
| (10) | Data communication module |

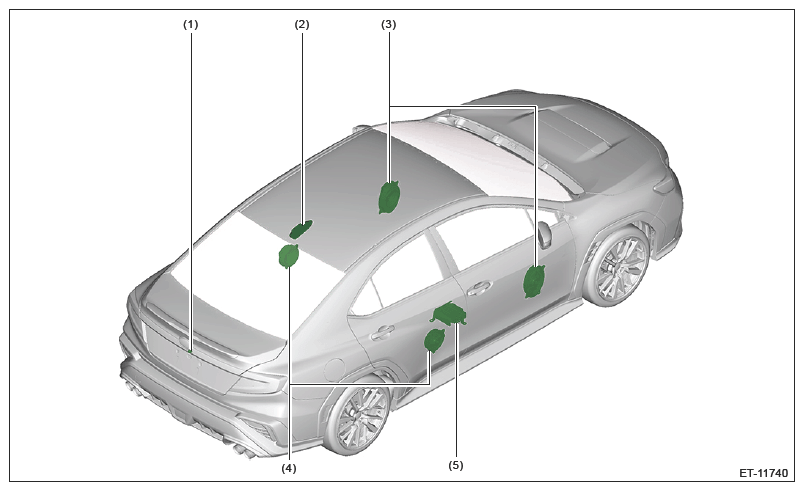

| (1) | Rearview camera |
| (2) | Antenna |
| (3) | Front door speaker |
| (4) | REAR DOOR SPEAKER |
| (5) | Audio amplifier |
NOTE:
For the CAN communication system, refer to the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION
.
