Airbag Control Module

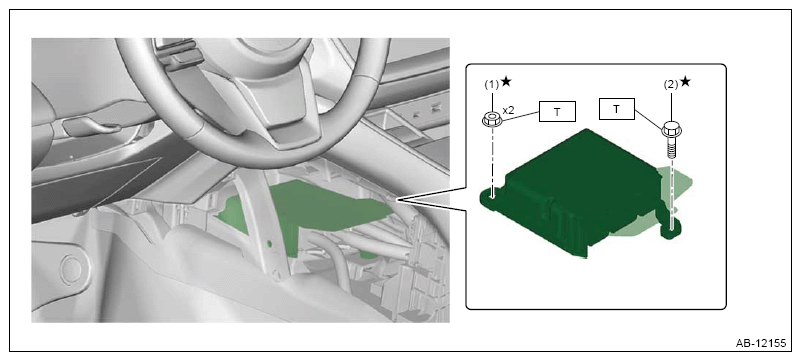

Airbag Control Module
Courtesy of SUBARU OF AMERICA, INC.
(1)
Nut
(2)
Flange bolt
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
