Transmission Harness: Removal

Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .
Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL .

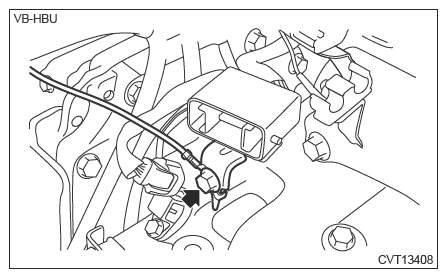

Remove the ground cord and stay.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Attach the ST.
NOTE: When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.

Preparation tool:

ST: STAND ASSY (18632AA000)

Courtesy of SUBARU OF AMERICA, INC.
Place the transmission body.
NOTE: Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.
Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
Remove the bolt securing the transmission harness.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal, and disconnect the connectors from the secondary speed sensor and front wheel speed sensor. (Except for WILDERNESS model)

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal, and disconnect the connectors from the secondary speed sensor, front wheel speed sensor, and primary pressure sensor. (WILDERNESS model)

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal, and remove the electric oil pump cover.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal, and disconnect the connectors from the primary speed sensor, secondary pressure sensor, inhibitor switch and electric oil pump.

Courtesy of SUBARU OF AMERICA, INC.
Remove all clips and remove the transmission harness.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
